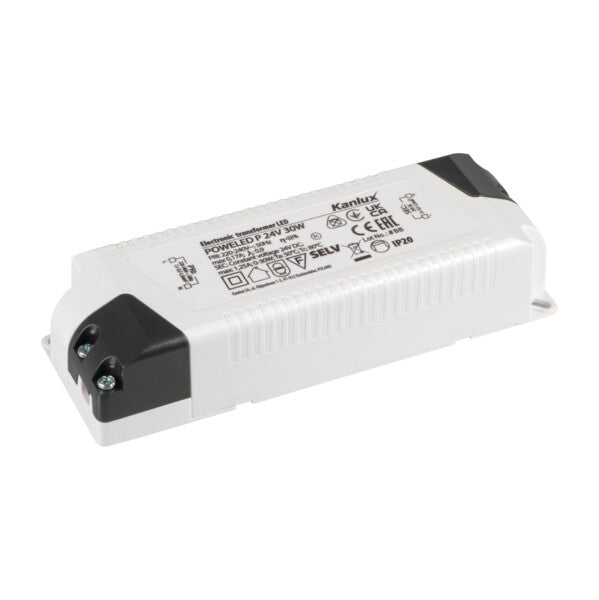

LED Power Supply 24V 30W IP20
Kanlux POWELED P 24V is an electronic constant-voltage power supply unit. It is used for powering LED belts such as LEDS 24V.
Specification
General description | EAN13: 5905339268150 |
---|---|
Colour: white | |
Material: Plastic | |
Weight and dimensions | Height [mm]: 32 |
Width [mm]: 48 | |
Length [mm]: 145 | |
Weight: 152g | |
Sales unit: piece | |
Outer box: 50 | |
Additional features | The power supply unit is not designed to work without load. |
Technical data | Rated voltage [V]: 220-240 AC |
Rated frequency [Hz]: 50 | |
Colour: white | |
Supply-cord type: constant-voltage | |
Maximum power [W]: 1-30 | |
Input voltage - PRI [V]: 220-240 | |
Output voltage - SEC [V]: 24 DC | |
Output current - sec [ma]: max 1250 | |
Tc [°C]: 80 | |
Maximum temperature Ta [°C]: 50 | |
Short-circuit protection: 1 | |
Possibility of installation on a normally flammable surface: yes | |
IP class: 20 | |
Class of protection against electric shock:1 | |
Short-circuit protection: II | |
Connection type: Terminal block | |
Range of sections of wires used [mm2]: 0,5-1,5 | |
Ambient temperature range to which the product can be exposed: 5÷25 |
