Hager VML118SODRK 18 Way 100A Metal CU Round KO + SPD

Hager VML118SODRK 18 Way 100A Metal CU Round KO + SPD

by Hager
SKU VML118SPDRK
£139.75
£139.75 - £139.75
£139.75 - £139.75
£139.75

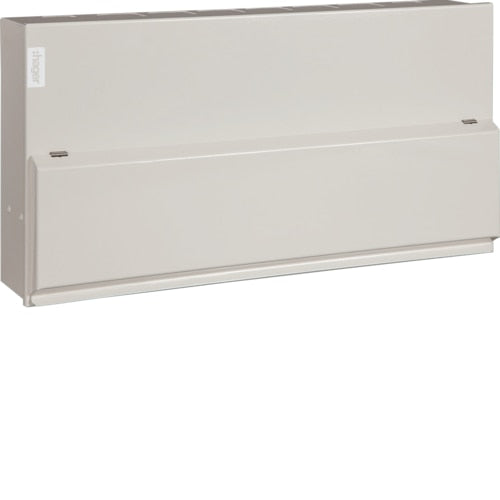

Hager 18 Way 100A Isolator Incomer Metal Clad Consumer Unit with Type 2 SPD

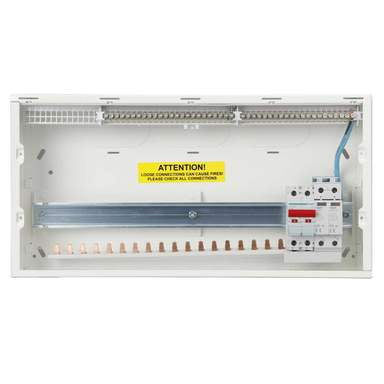

  • Supplied with a full metal DIN rail, 100A switch disconnector incomer and a full complement of earth and neutral terminals along with marking labels, busbar and instructions
  • Complete with round knockouts
  • Type 2 SPD fitted
  • Recommended for use with TT systems when utilising RCBO on outgoing circuits
  • Conforms to BS EN 61439-3 Including Annex ZB (16kA rating)



Cable Entry : Round Knockouts
Current Rating : 100A
Dimensions : (H)98.2 mm x (W)476 mm x (D)100 mm
IP Rating : IP2XC
Incoming Device : 100A Isolator
Material : Steel
Mounting Surface
Number of Modules : 22
Number of Outgoing Ways : 18
Standards BS EN 61439-3
Supplied With : Type 2 SPD and Round Knockouts
Surge Protection Fitted : Yes
Voltage Rating 230V
