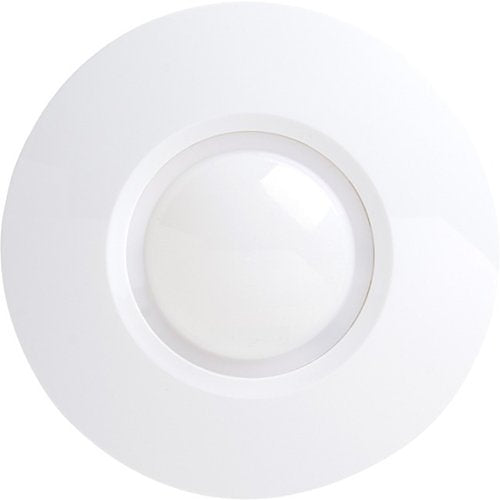

Omni-directional quad element pyro for true 360° pickup. Advanced digital design ensures maximum false alarm immunity in all environmental conditions, yet still maintains optimum catch performance.
Features
- Omni-Directional Quad Element Pyro For True 360° Coverage
- Digital Temperature Compensation
- Digital Signal Processing
- First To Alarm Indication
- 70V/m Rf Immunity
- Remote LED Disable
- EN 50131-1 Grade 2
- Sealed Optics
Specification
- Protection Area:7.0m (23ft) diameter when mounted at 2.4m (8ft)
- 10.5m (35ft) diameter when mounted at 3.6m (12ft)
- Supply Voltage: 9 - 16VDC
- Current Consumption: 16mA typical at 12VDC
- Alarm Signaling: Built-in normally closed relay
- Alarm Relay: Rated at 24VDC, 50mA protected by 18Ω series resistor
- EMC: Independently certified to EN 50130-4 : 1996
- RF Immunity: No false alarms from 80MHz to 1GHz at 70V/m
