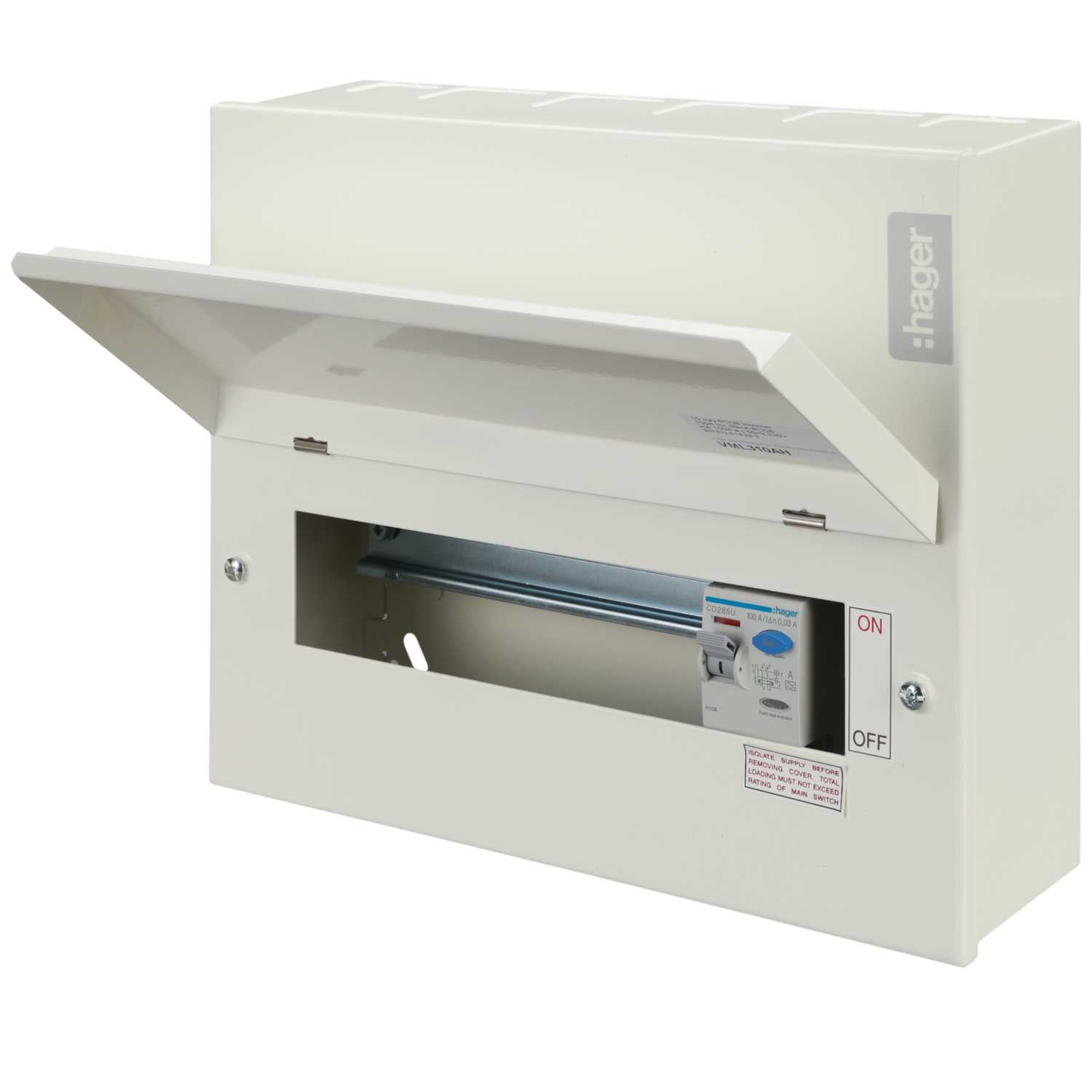

Hager VML310AH 10 Way 100A 30mA Type A RCCB Incomer

Hager VML310AH 10 Way 100A 30mA Type A RCCB Incomer

by Hager
SKU VML310AH
£59.49
£59.49 - £59.49
£59.49 - £59.49
£59.49

The Hager VML310AH RCD Isolator all metal consumer unit is fully compliant with the 18th Edition of BS 7671:2018. Supplied with 100A 30mA RCD isolator. The consumer unit can be populated with up to 10 MCBs/RCBOs. It allows for total isolation of circuits and is the best choice to achieve a 18th edition installation and avoid nuisance tripping.


Features
• 1 x 100A 30mA RCD switch controls the entire board and allows for up to 10 x RCBO's or MCB's circuits.
• Max No of MCB's or RCBO's = 10.
• Full Din rail in all units will accept any modular DIN mounted devices such as bell transformers and timers.

Range Overview
The Hager Design 10 is a functional board created for all applications. As with all models in the range, there is ample cable space available even when RCBOs are fitted. The top mounted terminal rail makes the wiring of the neutral and earth connections neat and simple. Multiple fixing points, and a full metal DIN rail ensure the devices sit square.

100A Consumer unit enabling conformity with 18th Edition wiring regulations for overload protection of RCCBs and switches, in any single phase residential application regardless of the current rating to the supply authority fuse. Type A RCDs are provided, these devices can detect AC sinusoidal waveforms and pulsating DC components.

Technical Info
• Multiple fixing points
• All Design 10 consumer units contain top, bottom and rear knockouts and a meter tail cable entry plate as standard
• No restrictions under the DIN rail
• Cable entries positioned for easy access to devices
• Cable entry protectors to prevent damage to cable caused by sharp edges
• Rear cutouts optimised to give neater installation
• Terminal bars are top mounted allowing for easy cable dressing - fully rated to 100A
• Conforms to BS EN 6439-3 including Annex ZB (16kA rating)
• Full range of accessories available

Dimensions
Height (mm): 246
Width (mm): 299
Depth (mm): 83/100

  • Colour : White
  • Current Rating : 100A
  • Guarantee : 1 Year
  • Incoming Device : 100A 30mA Type A RCD
  • Material : Metal
  • Mounting : Surface
  • Number of Modules : 12
  • Number of Outgoing Ways : 10
  • Rcd Rating : 100A
  • Rcd Type : A
  • Standards : BS EN 61439
  • Surge Protection Fitted : No
  • Surge Protection Ready : No
  • Tripping Sensitivity : 30mA
  • Voltage Rating : 230V
