16 Way 125A TPN Board Glazed

16 Way 125A TPN Board Glazed

by Hager
SKU JK116BG
£259.99
£259.99 - £259.99
£259.99 - £259.99
£259.99

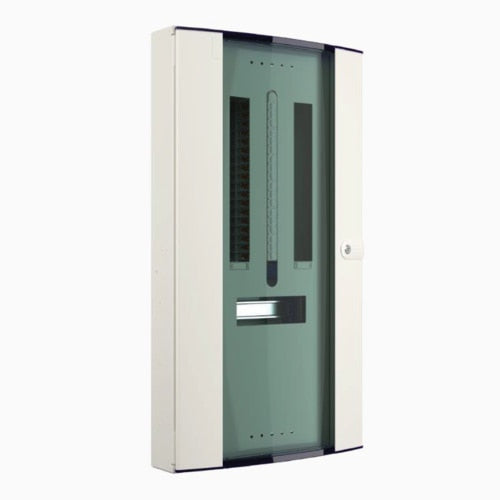

Hager 16 way surface mounting TPN board with glazed door.
  • W: 465mm x H: 500mm x D: 132.5mm



  • Standards Designed, manufactured and tested to BS EN 61439-3



  • Busbar Current Rating: 125A



  • Busbar Type Fully shrouded copper



  • Busbar Rating 25kA Conditional



  • Incoming:
    • 100A Switch
    • 125A Switch
    • 63A contactor AC3
    • 100A contactor AC3
    • Direct connection
    • RCCB incomers



  • Outgoing Ways: 16



  • Outgoing Protection:
    • Type B MCB (6A to 63A, 1P & 3P)
    • Type C, D MCB, (0.5A to 63A, 1P & 3P)
    • 1Mod and 2Mod RCBO



  • Voltage Rating in AC: 230 / 415V



  • IP Protection: IP3X to BS EN 60529



  • Enclosure Body Type: Steel



  • Cable Entry: Obround protected cable entry points



  • Terminal Connection Capacity:
  • Incoming Line Terminal: 50mm2



  • Incoming Earth Terminal: M8 stud



  • Incoming Neutral Terminal: 50mm2 cage or M6 stud



  • Outgoing Earth Terminals: 16mm2



  • Outgoing Neutral Terminals: 16mm2



  • Enclosure Earth Stud: M8



  • Mounting:
    • 4 x key hole fxing holes plus central top key hole for one fxing hanging / levelling
    • Surface Wall Mount



  • Gland Plate: Top and bottom removable



  • Integrated Locking System: Coin lock as standard, key lock as accessory



  • Protection index IP: IP30
    Protection class: Protection class III
