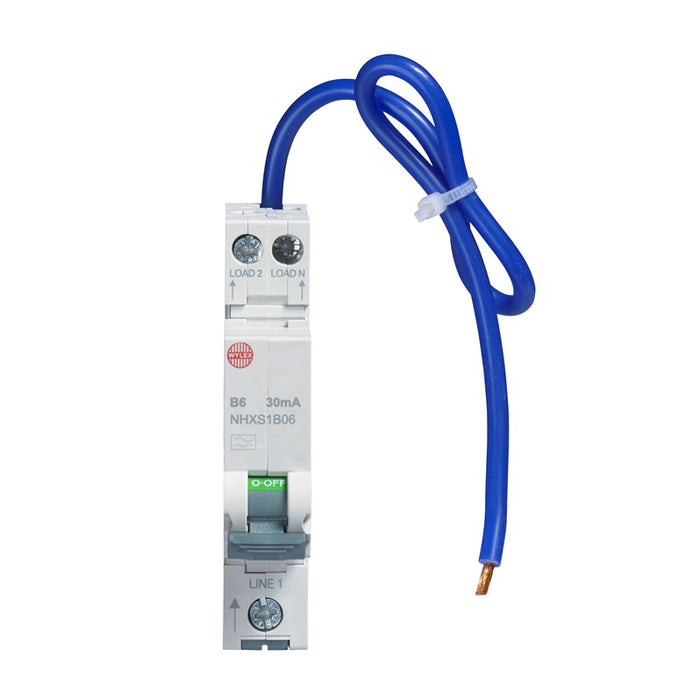

Wylex NHXS1B06 6A 30mA RCBO

Wylex NHXS1B06 6A 30mA RCBO

by Wylex
SKU NHXS1B06
£18.95
£18.95 - £18.95
£18.95 - £18.95
£18.95

Single module, Miniature Bi-Directional RCBO. 6A B curve (MCB), 30mA Type A (RCD). Single pole with switched neutral. No miss busbar connection. Fits NM & NMX consumer units and NH L range Distribution Boards.

-Built in switched neutral
-Take up less space in the consumer unit

Specifications:

Brand Wylex
Current Rating 6A
Depth 77mm
Dimensions (H)90 mm x (W)18 mm x (D)77 mm
Guarantee 1 Year
Height 90mm
IP Rating IP20
Incoming Terminal Capacity 0.75mm² to 16mm²
Mounting DIN Rail
Number or Modules 1
Number of Poles Single Pole and Neutral
Outgoing Terminal Capacity 0.75mm² to 16mm²
Packaging Types Each
Product Range NHXS
RCD Type A
Short Circuit Rating 6kA
Standards IEC 61009-1
Tripping Characteristics B Curve
Tripping Sensitivity 30mA
Unspsc V18 39121601
Voltage Rating 230V
Weight 0.14kg
Width 18mm
